Monitor from a broken laptop :D
03/08/18(Fri)09:55

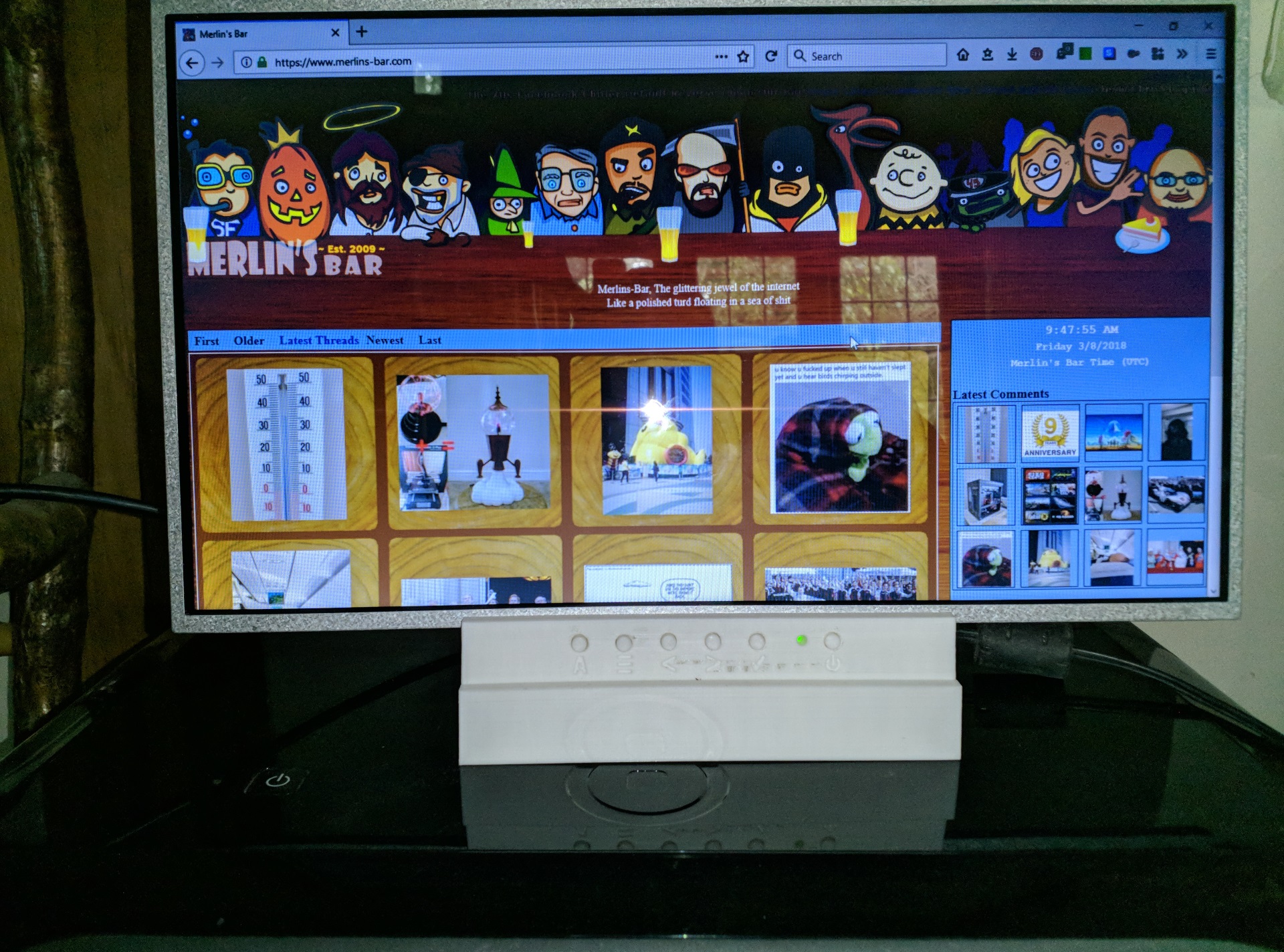

I received an old laptop recently that had a dead motherboard. It was worth repairing so I stripped it for parts. I bought an LCD control module from China for £18 and made a stand to create this minimalist monitor :D

  • Supported file types are: GIF, JPG, PNG
  • Maximum file size allowed is 4000 KB.
  • Images greater than 200x200 pixels will be thumbnailed.
Subject (Optional)
Comment
File (Optional)
Submit

04/08/18(Sat)21:53

The true Scrapheap Challenger, lol.

04/08/18(Sat)10:18

>>34765 I just don't like things to go to waste :D

I also saved the DVD-RW drive and bought a usb cable so I can use that, the hdd which is only 320Gb but will be a useful spare, the keyboard, although it's not much use really, the touch pad which can pretty easily be used as a usb/ps2 mouse device and the battery which I plan to use to make a little UPS with for the raspi server.

03/08/18(Fri)21:55
62.5
(62.5 Kb, 500x313)

Nice work, dude. You are truly a wizard with electronics!

03/08/18(Fri)10:00
197.0
(197.0 Kb, 1600x1200)

This is the LCD control board.

03/08/18(Fri)09:57
495.9
(495.9 Kb, 1920x1424)

The LCD control module has plenty of inputs and it's own menu system to control all the usual things.
