Tiny PC at work

09/08/20(Sun)02:16

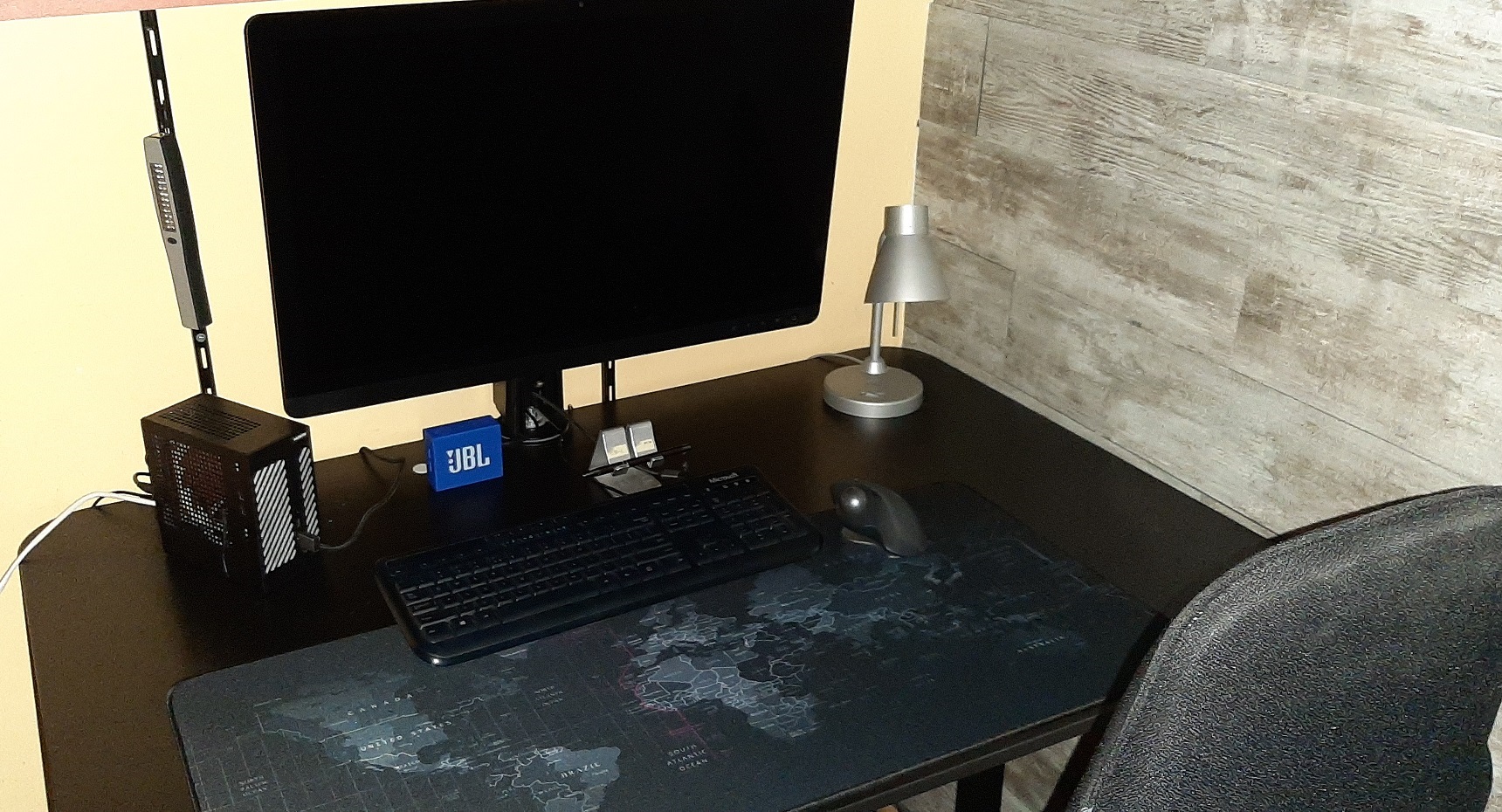

Changed the mid tower for a barbone. So much space, less noise, and less heat!

The ASRock DeskMini A300 with a Ryzen 2200G, 16GB, and a 250GB SSD hooked up to a 2560x1440p monitor. Mostly using word, excel, and web based software, so the tower was overkill..but at the time of build Ryzen wasn't there yet.

The only issue is that it doesn't have onboard wifi (it's optional and a pita to install [those antenna's]).

Save Image View Image

header=[Image Viewer] body=[The image viewer allows you to view the image full screen. You can also use the image viewer to zoom in or out.<br/>Instructions:<br/>Once the viewer is open you will see the image adjusted to your screen size. To close the image us the X button top right or left click on the image, double left click to close in zoom mode. To use the zoom feature us the zoom button top left. In zoom mode the bottom right of your screen will show an indicator of what part of the image you can see. You can use the scroll wheel of your mouse to zoom in and out. You can click and hold the left mouse button on the image and drag it to move the viewer around the zoomed image if it is larger than the screen size. You can exit zoom mode by clicking the zoom button top left to exit it, or exit the viewer completely with a double left click.]

652.5 Kb, 1720x930

Set This As My Avatar

15/08/20(Sat)00:41

Comment No.36500

Sorry for the late reply. Thank you, dude!

10/08/20(Mon)11:12

Comment No.36463

236.2


(236.2 Kb, 756x602)

Set This As My Avatar

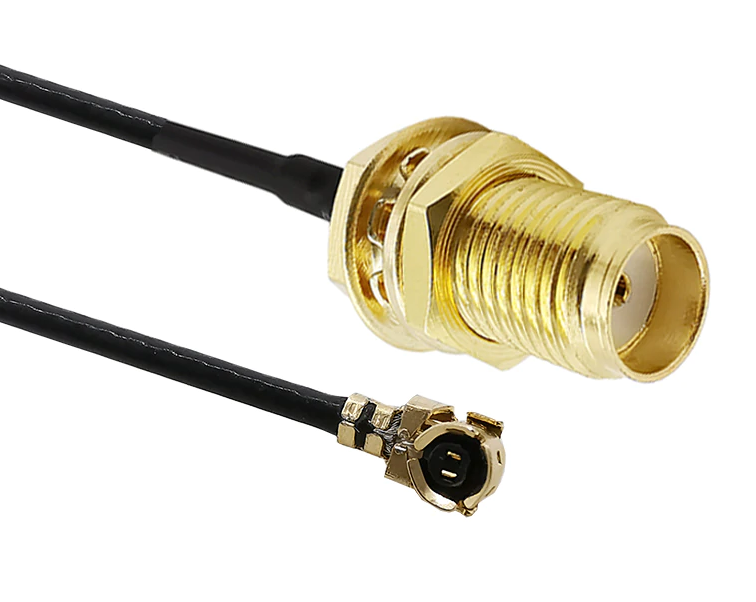

>>36462 The picture >>>

10/08/20(Mon)11:11

Comment No.36462

You have to be a bit careful with those connectors. They often need a bit of force to get them to connect, but you have to have them in exactly the right spot to connect.

Sadly you can't just solder them as they are actually 2 wires in one like a TV Coax cable.

You also need to be a little careful buying new cables as there are at least 2 different sizes, but I think pretty much all recent wifi cards use 'U.FL' connectors like the one in the picture.

The Bluetooth is probably using an internal antenna as it's only for close range radio signals.

09/08/20(Sun)19:41

Comment No.36454

The tiny antenna's on the wires are bent. It didn't snap-on the card as usual so I guess I used too much pressure. <derp>
Luckily the card connectors are fine, so now I just need to find 2 of those (internal) wires. Do you know how they are called?

Would it be possible to solder them, will they still get a signal? Cause I've noticed it does pick-up the bluetooth signal of the downstairs radio.

09/08/20(Sun)13:26

Comment No.36451

ASRock produce some good little mobo's, although I found the support a bit crap with the last one I bought.
I fitted an internal wifi card on my current mini ASRock mobo and it isn't too hard to do, I drilled a couple of holes to fit the antennas ass the case didn't have them. You can always use a USB wifi adapter of course.

09/08/20(Sun)02:17

Comment No.36449

*barebone not barbone, lol.

https://www.asrock.com/nettop/AMD/DeskMini%20A300%20Series/
