I got a new toy :D

09/01/20(Thu)22:40

I've wanted a milling machine for a very long time and finally saved up enough pennies to get one. It's only a small one suitable for hobby work but it'll probably do anything I want.

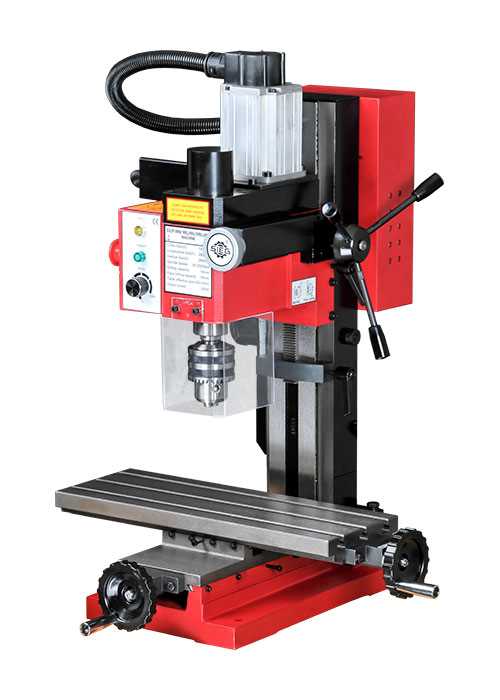

It's a SEIG SX2P in case you were wondering.

I already have some modifications in mind like a tachometer & DRO (digital read out) for the X, Y & Z axis.

Save Image View Image

header=[Image Viewer] body=[The image viewer allows you to view the image full screen. You can also use the image viewer to zoom in or out.<br/>Instructions:<br/>Once the viewer is open you will see the image adjusted to your screen size. To close the image us the X button top right or left click on the image, double left click to close in zoom mode. To use the zoom feature us the zoom button top left. In zoom mode the bottom right of your screen will show an indicator of what part of the image you can see. You can use the scroll wheel of your mouse to zoom in and out. You can click and hold the left mouse button on the image and drag it to move the viewer around the zoomed image if it is larger than the screen size. You can exit zoom mode by clicking the zoom button top left to exit it, or exit the viewer completely with a double left click.]

29.1 Kb, 500x700

Set This As My Avatar

22/01/20(Wed)13:23

Comment No.36022

76.6


(76.6 Kb, 1000x1000)

Set This As My Avatar

I'll try and remember to do that.

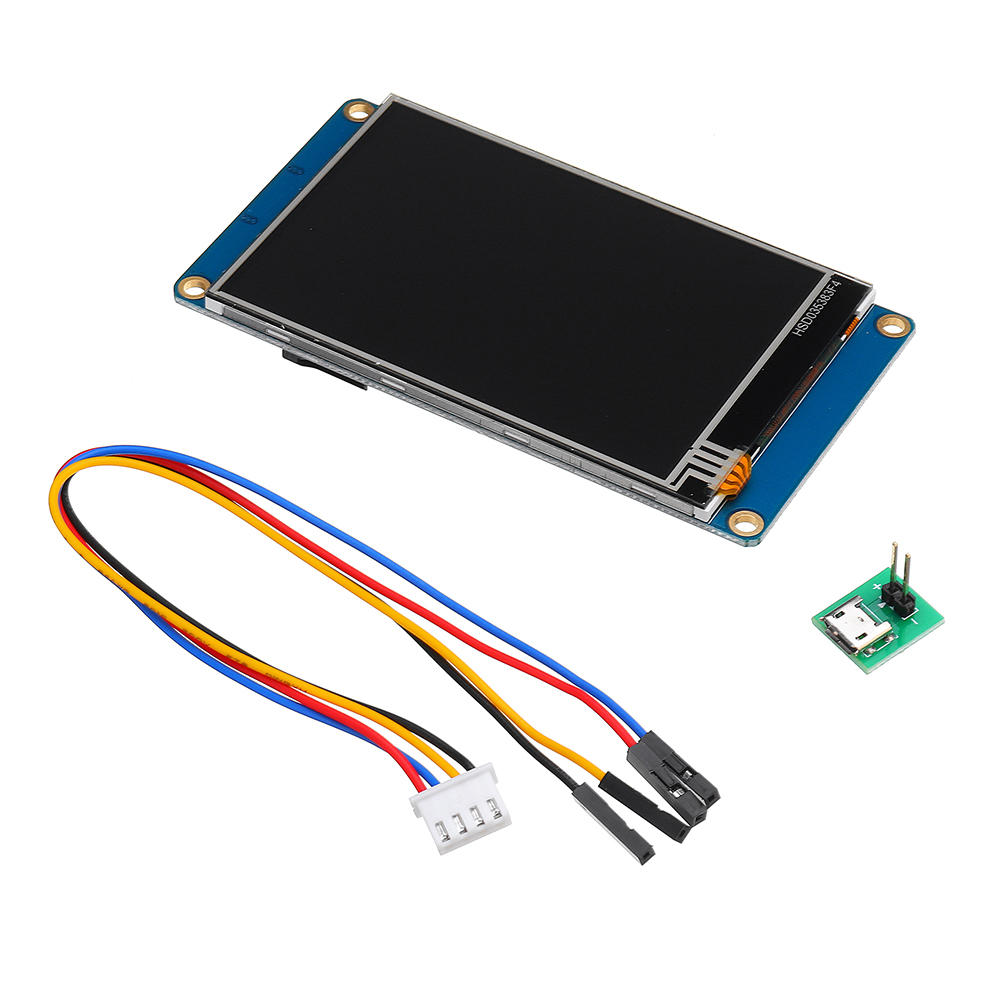

I got a 3.5" lcd touch screen today that I plan to use for this project.
I'm currently trying to finish off some other projects before I start this one.

21/01/20(Tue)22:01

Comment No.36020

Do post regular pictures when you update.

15/01/20(Wed)13:33

Comment No.36000

>>35999 Thank you good sir. I'm also thinking that a DRO will make a huge difference.

Interestingly even though there isn't a switch on this mill for forward and reverse the existing wiring allows for a switch to be added easily which would make tapping threads, with the right collet, very easy. Also the existing wiring allows for connection of an LED display to show the motor speed.

My plan is to ultimately replace all the existing controls with a touchscreen LCD for control of speed and direction along with provision for DRO display too. Also in place of the existing potentiometer for speed control I'll replace it with a rotary encoder to allow for easy adjustment without needing to use the touchscreen.

The first phase will be just to add the LCD to show the speed.

The second phase will be full controller replacement

The third phase will be to add DRO.

13/01/20(Mon)16:45

Comment No.35999

A DRO is great. even a proper Bridgeport mill is made infinitely better with a DRO.

Congrats on the toy

10/01/20(Fri)20:44

Comment No.35993

>>35991 Very nice, but also very expensive both for parts and the machinery you need to make it. Maybe one day :)

I might make mine cnc one day but the main goal is to make it more accurate and easier for me to use.

10/01/20(Fri)19:29

Comment No.35991

Where goes the wome...oh wait a MILLING machine, not milking..,stupid brain. ;)

So you're you going to create a CNC? That would be nice, next to the 3D printer.

A bit too big and heavy
https://www.youtube.com/watch?v=q0RE-h1VDIg
