Hmm. I wonder why the floor joists are rotting...

10/02/23(Fri)15:03

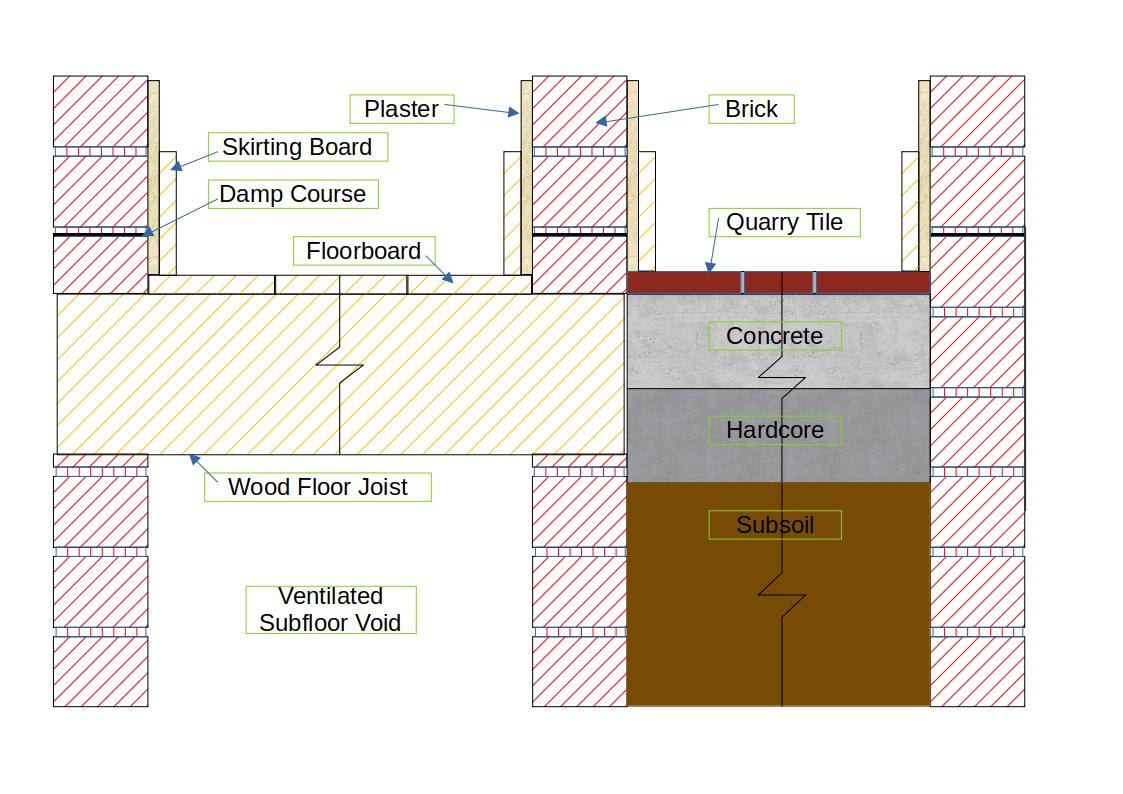

It's normal for the DPC (Damp Proof Course) to be above floor level with a solid (Concrete) floor but with a suspended wooden floor it should be below the joists, not above!

This is the damp problem in my new house I have to fix. It's very unusual, in the UK at least, to have suspended wooden floor and solid on the ground floor level of a house. This is why the DPC is wrong for the timber floor side. The reason my house is like this is because it's built on a hill and they clearly couldn't be bothered with getting lots of infill to do all solid floors.

I will have to replace the floor joists and fit them on hangers instead of fitting them in to the brickwork. I will also be adding tanking (a cement based slurry) that will waterproof the brickwork from the DPC down to just below the joists which will protect them from moisture in the brickwork. I'll insulate between the joists too. Hopefully the existing floorboards can be reused.

On the concrete & tile side I'll take up the tile and paint a damp proof membrane (DPM) on to the surface and up the wall to the DPC. I'll then add a thin insulating board and thin tiles on top.

Save Image View Image

header=[Image Viewer] body=[The image viewer allows you to view the image full screen. You can also use the image viewer to zoom in or out.<br/>Instructions:<br/>Once the viewer is open you will see the image adjusted to your screen size. To close the image us the X button top right or left click on the image, double left click to close in zoom mode. To use the zoom feature us the zoom button top left. In zoom mode the bottom right of your screen will show an indicator of what part of the image you can see. You can use the scroll wheel of your mouse to zoom in and out. You can click and hold the left mouse button on the image and drag it to move the viewer around the zoomed image if it is larger than the screen size. You can exit zoom mode by clicking the zoom button top left to exit it, or exit the viewer completely with a double left click.]

123.1 Kb, 1123x794

Set This As My Avatar

09/03/23(Thu)18:53

Comment No.38164

Still waiting for the old house to sell, but there is one couple very interested they just need a buyer for their house. The housing market is always quiet in winter but it'll pick up soon.

The new house is on hold until the old one sells, but I'm still visiting and doing a few jobs in the house and garden. The floor repairs will probably wait until I live there, but I'll probably do more investigating but taking up some floorboards once the weather is warmer.

09/03/23(Thu)17:33

Comment No.38162

So how's it going with the joint(s)? Set a date yet or they already busy? Have you sold the old house yet or at least potential buyers have visited?

13/02/23(Mon)17:59

Comment No.38146

Looks like a good plan. Water proofing is critical and always harder to do after the fact. Good luck friend.

10/02/23(Fri)15:32

Comment No.38145

136.5


(136.5 Kb, 1123x794)

Set This As My Avatar

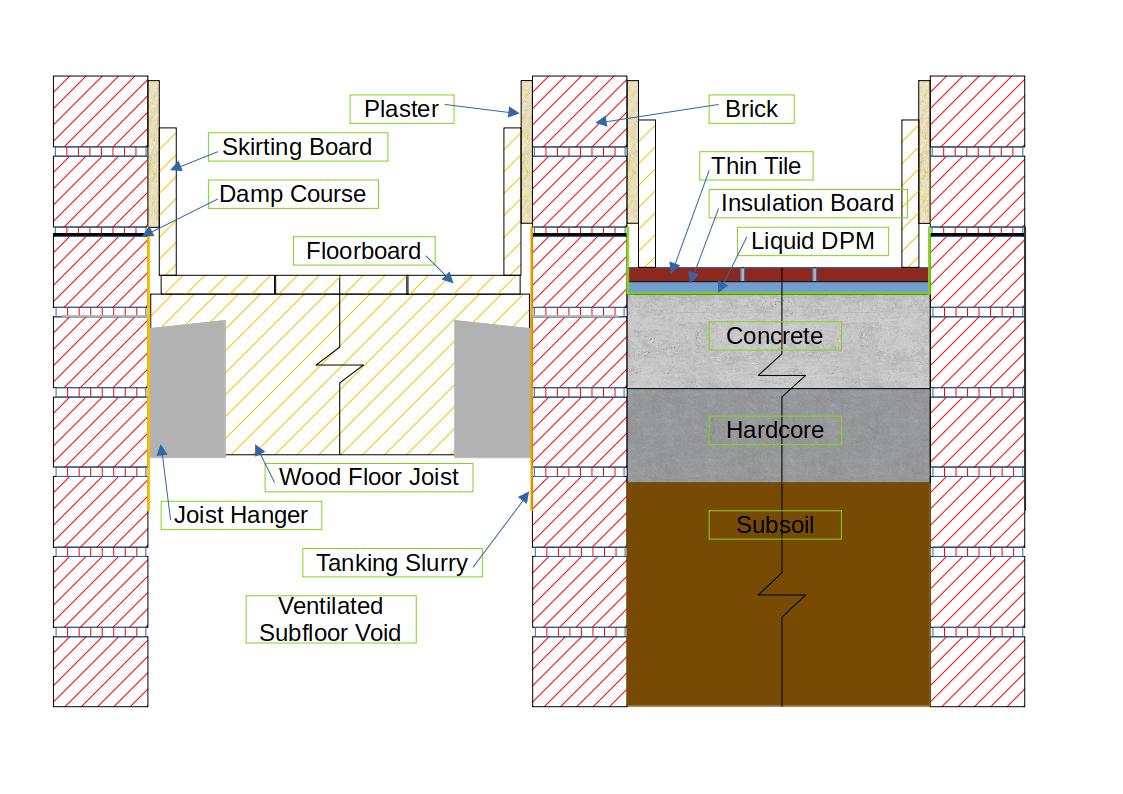

This is the proposed repair currently, but it may change as I find out more. Eventually I'll need to get the plan approved and get consent from the local building control before I proceed with the repairs.

I may well wait until I've sold my current house before I get in to the work anyway as I have limited time that I can be there. It'll be a pain in the arse to do while I'm living there too, but I can do one room so it won't be a major problem.
