Finally got my Bike Dashboard hardware completed...

21/04/14(Mon)14:22

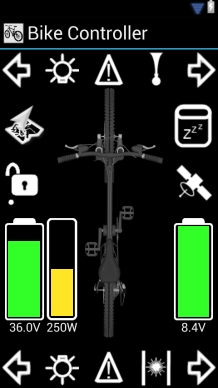

...And the software for my android phone isn't far behind (see photo) :D
It lets me control and monitor the lights, alarm, gps tracker, battery voltages and power usage by the motor. Quite pleased with how it's working out :)

Save Image View Image

header=[Image Viewer] body=[The image viewer allows you to view the image full screen. You can also use the image viewer to zoom in or out.<br/>Instructions:<br/>Once the viewer is open you will see the image adjusted to your screen size. To close the image us the X button top right or left click on the image, double left click to close in zoom mode. To use the zoom feature us the zoom button top left. In zoom mode the bottom right of your screen will show an indicator of what part of the image you can see. You can use the scroll wheel of your mouse to zoom in and out. You can click and hold the left mouse button on the image and drag it to move the viewer around the zoomed image if it is larger than the screen size. You can exit zoom mode by clicking the zoom button top left to exit it, or exit the viewer completely with a double left click.]

32.6 Kb, 218x388

Set This As My Avatar

29/04/14(Tue)14:29

Comment No.27510

Update:
I've added a fuel gauge that measures the amount of battery power used in total per charge, which can then be compared to the total battery capacity from a full charge. Using data from this now shows that the battery will typically be capable of 40 to 50 miles! Sweet! :)

25/04/14(Fri)21:56

Comment No.27433

Great! Now we need batteries to ride our bikes! :p

23/04/14(Wed)21:31

Comment No.27415

shit, I'm only lvl 39

23/04/14(Wed)20:49

Comment No.27414

>>27412 I guess you have to be a level 40 nerd to appreciate that graph XD

23/04/14(Wed)19:10

Comment No.27412

69.3


(69.3 Kb, 400x377)

Set This As My Avatar

o_0

>>27399

22/04/14(Tue)14:25

Comment No.27400

>>27399 *Note that the figures for volts are stored as tenths of a volt. The bike battery wasn't operating at 400+ volts, but 40+ :D

22/04/14(Tue)14:21

Comment No.27399

199.6


(199.6 Kb, 1600x900)

Set This As My Avatar

>>27398 LOL XD No bowing required I assure you :)

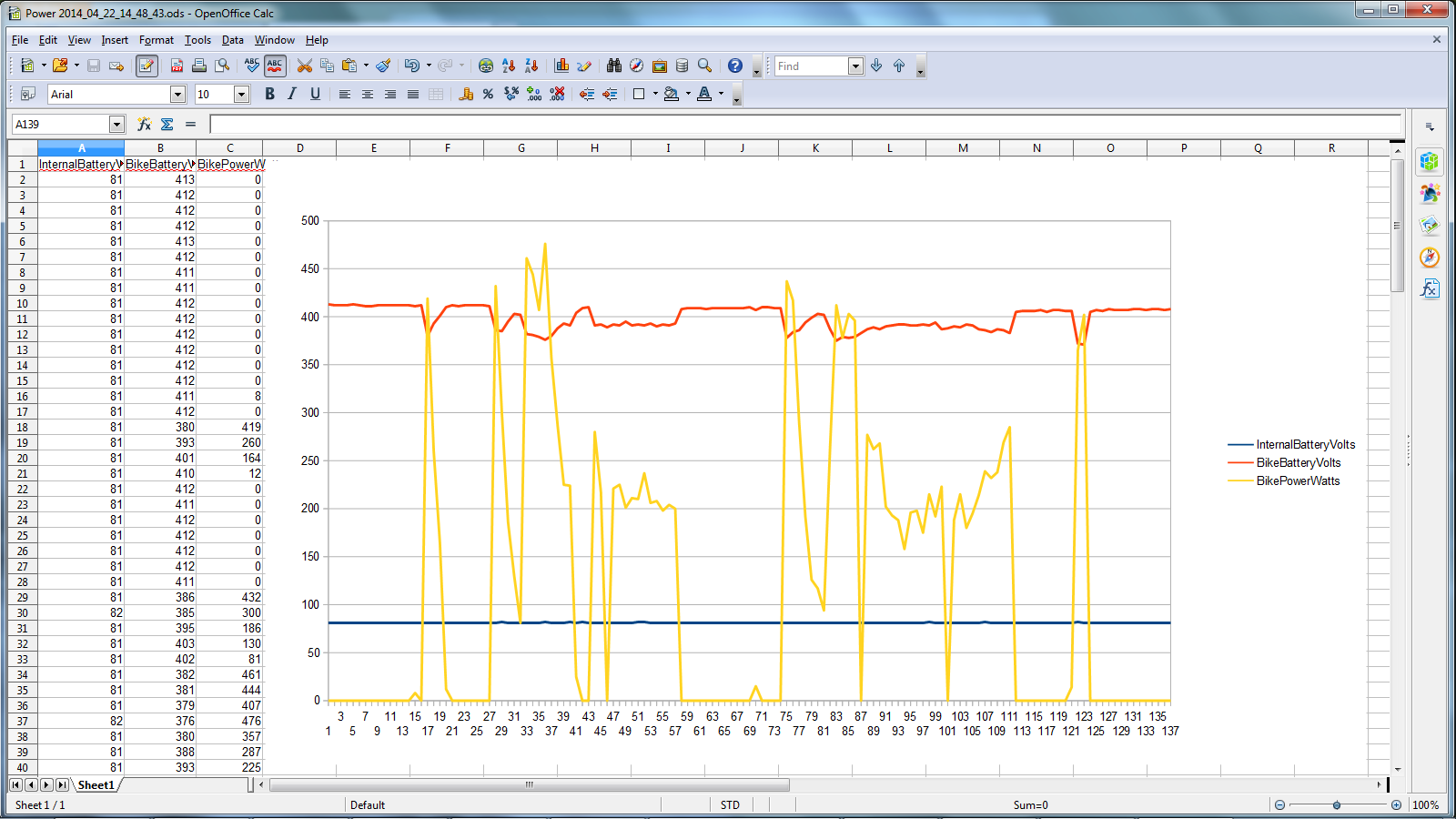

Just had a quick blast up and down the road to test a power logging feature I added. See picture.
The voltage of both batteries and the watts used of the bike battery are measured here. It hits nearly 500 watts at peak power :O
*The internal battery is used to power the alarm, gps, lights etc when the main bike battery is not available.

22/04/14(Tue)06:41

Comment No.27398

Damn, you geek king! I bow deep, mylord

22/04/14(Tue)00:56

Comment No.27397

41.9


(41.9 Kb, 800x532)

Set This As My Avatar

>>27393 Yes I made the app, and yes the bike can charge the phone :)

>>27394 ;P

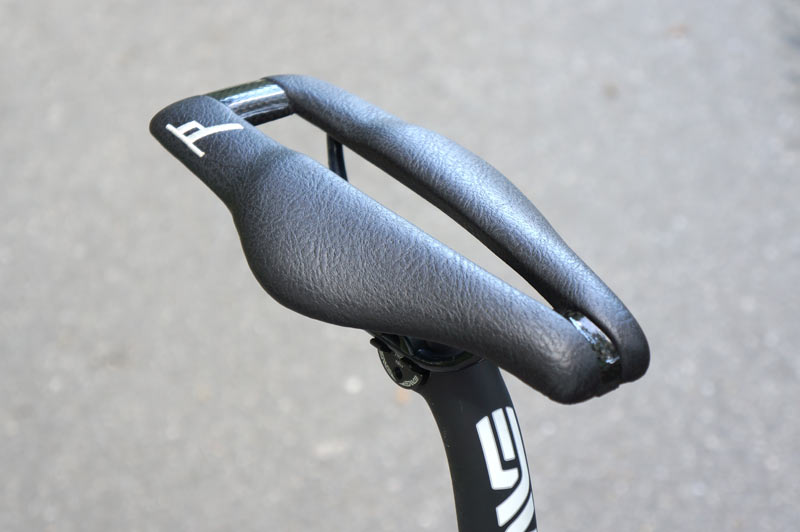

>>27396 Split saddles do really exist, but possibly not for the purpose you mention :D

21/04/14(Mon)23:14

Comment No.27396

6.3


(6.3 Kb, 260x194)

Set This As My Avatar

All it needs now is a toilet.

21/04/14(Mon)19:19

Comment No.27394

you guys and your toys!! ;)

21/04/14(Mon)17:15

Comment No.27393

wow, that looks awesome! Did you make the app yourself or was it made for you? ;)

Does the bike charge your phone too?
